Our Products


Telescopic Radial Stacker

/

Prime ship loaders ensure beyond to compare able to change when loading and unloading a vessel. Directly unload trucks in the port/terminal to vessels and barges and eliminate the double handling of materials. Prime ship loading equipment allows you to maximise production rates and minimize labour on site.

The Mobile Telescopic Radial ship loaders ensure beyond to compare able to change when loading a vessel. The radial and telescopic features allow the operator to easily locate multiple hatches from one feeding position reducing hatch change times and production downtime.


Features & Benefits

  • Telescopic and Radial movement features offer beyond to compare capacity to handle most sized vessels.
  • By using Driven wheels under carriage Tracks Rails to suit as per requirements in jetty /quay design
  • Fully sealed feed-in / transfer and discharge points to eliminate spillage on site.
  • Loading rates up to 2,000TPH.
  • Full Extension up to 51 metres (170ft) Delivery Height 20mtrs (66Ft)
  • Reduced civil requirements on site..
  • Land / Sea Based Systems are available.
  • Eliminate double handling of material in Port /Inland Terminal
  • Complete Dust Extraction / Suppression options for handling complete of materials.





Mobile Type Bulk Reception
Radial Truck Unloader

/

The Tracked Radial Bulk Reception Radial Truck unloader offers mobility and flexibility for a complete range of industries and applications, including mobile truck unloading, reclaiming, rail wagon loading / unloading, barge loading / unloading, truck loading, with the ability to handle complete range of materials such as coal, grains, fertilisers, ore's (iron, copper, gold, bauxite), aggregates, woodchips, wood pellets, sulphur, cement clinker etc.


Features & Benefits

  • Power source options: Diesel / hydraulic, Dual PowerFull 140° radial discharge conveyor with choice of conveyor lengths
  • Belt weight scales
  • Hydraulic extended hopper wings
  • Option of steel or rubber tracks
  • Wrap-around pull cord
  • Vibrating motor for sticky material
  • Belt options: Chevron, Heavy Duty
  • Various feed boot liners; hardox, various rubber plys
  • Full, 1/2 and quarter length rubber conveyor skirting available









APPLICATION

  • Loading a barge with grain direct from a road truck
  • Loading a barge direct from a road truck
  • Loading a barge direct from a wheel loader
  • Feeding a Radial Telescopic shiploader loading a Handymax vessel
  • Feeding a Radial Telescopic shiploading from road trucks
  • Fed from grab crane in barge-unloading application
  • Feeding Radial Telescopic, stockpiling in warehouse from trucks (Ship unloading)
  • Stockpiling material from pay-loaders in a stockyard
  • Stockpiling coal from wheel loader in a stockyard (Dust Covers)
  • Reclaiming coal in a Power station
  • SReclaiming iron ore in a steel mill with CAT 988 Wheel loader
  • Rail Car/ Wagon loading directly from trucks 13 Unloading from Rail Car/Wagon


The Tracked Radial Bulk Reception Radial Truck unloader offers mobility and flexibility for a complete range of industries and applications, including mobile truck unloading, reclaiming, rail wagon loading / unloading, barge loading / unloading, truck loading, with the ability to handle complete range of materials such as coal, grains, fertilisers, ore's (iron, copper, gold, bauxite), aggregates, woodchips, wood pellets, sulphur, cement clinker etc.

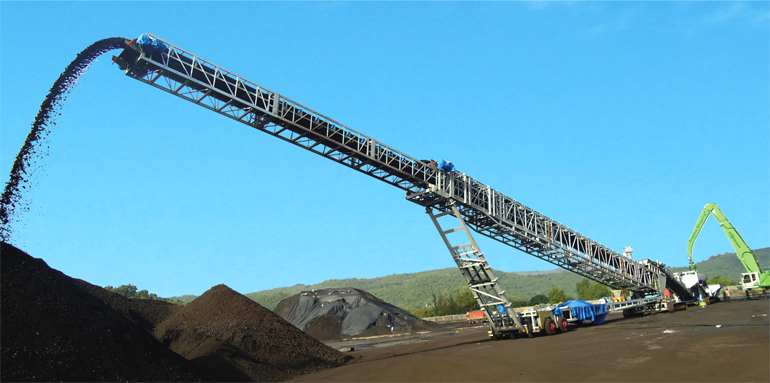

Portable Radial Stacker Conveyor

/

Portable Radial Stacking Conveyors with more sizes and options available. Our Portable Radial Stacking Conveyors are Designed to be the quickest from road transportation to field operation. They are equipped with a heavy-duty undercarriage for stability, safety, and support.
In-house Design engineers calculate and design Structural frames to your specific application needs. We provide portable radial stackers as per your Requirement, cost-effective solution with custom options and features.
Top-Fold Frame - Optional manual or hydraulic top-folding frame is available on stackers 70' through 150'. Single- or double-fold options reduce load lengths for optimal portability.
Portability Option such as power-fold head and tail sections, gullwing axles, air brakes and lighting packages offer quick set-up and superior road portability.
Optional Electrical Control Electrical control panels with all necessary starters and wiring are installed by our UL-certified electrical department. Compatibility Hydraulic options allow our radial stackers to be powered
Quality Construction All-jig-welded lattice frames with heavy-duty chord angles ensure a straight and reliable conveyor frame. Made in India by experienced personnel using proven manufacturing techniques to ensure unmatched quality.







Operating Specification


Operating Dimensions 50’ 60’ 95’ 100’ 125’ 150’
(A)Conveyor length (m) 50'-0”(15.2) 60'-0”(18.2) 95'-0”(29.9) 100'-0”(30.4) 125'-0”(38.1) 150'-0”(45.7)
(B)Conveyor ground length (m) 45'-0”(14.0) 55'2”(16.8) 88'-7”(27.0) 93'-0”(28.5) 116'-2”(33.4) 139'-9”(42.6)
(C)Raised height to center of pulley(m) 17'-11”(5.5) 21'-4”(6.5) 31'-7”(9.6) 33'-11”(10.3) 36'-0”(11.0) 49'-6”(15.1)
(D)Lowered height to center of pulley(m) 12'-5”(3.8) 13'-3”(3.9) 14'-4”(4.3) 13'-6”(4.1)) 19'-5”(5.9) 17'-11”(5.5)
(E)Anchor pivot to center of axle(m) 25'-5”(7.8) 31'-2”(9.5) 48'-4”(14.6) 51'-5”(15.6) 60'-2”(18.4) 77'-3”(23.6)

Vertex Portable Radial Stacker Conveyor

/

PRIME Conveyor is its 22-degree stockpiling incline. Standard conveyors only stockpile at 18 degrees. The VERTEX Conveyor's increased incline is suitable for smaller footprints. Manufactured in 80-foot, 100 foot, and 125 foot lengths, the VERTEX Conveyor has the capacity to stockpile 25-40% more material than standard radial stackers. A 125-foot conveyor creating a 270 degree pile can stockpile over 100,000 tons of material.

Operating Dimensions 80’ 100’ 125’
(A)Conveyor length (m) 80'-0”(24.4) 100'-0”(30.5) 125'-0(38.1)
(B)Conveyor ground length (m) 72'-3”(22.0) 91'-8”(22.9) 116'-4”(35.4)
(C)Raised height to center of pulley(m) 32'-5”(9.9) 39'-4”(12.0) 50'-8”(15.4)
(D)Lowered height to center of pulley(m) 18'-1”(5.5)) 20'-1”(6.1) 18'-2”(5.4)
(E)Anchor pivot to center of axle(m) 32'-2”(9.8) 39'-4”(11.9) 46'-5”(14.2))


Travel Dimensions 80’ 100’ 125’
(A)Travel length-Kingpin to rear (m) 53'-7”(16.4) 68'-8”(21.0) 84'-2(25.7)
(B)Travel height (m) 13'-5”(4.0) 13'-2”(4.0) 13'-11”(4.2)
(C)Kingpin to end to tow eye(m) 34'-7”(10.6) 39'-7”(12.1) 49'-4”(15.1)
(D) Axle to head pulley(m) 19'-0”(5.8) 29'-1”(8.9) 34'-10”(10.6)
(E)Anchor pivot to center of axle(m) 32'-2”(9.8) 39'-4”(11.9) 46'-5”(14.2)
FD Axle size Fd1520 Fd20 Fd4039
Weight at Axle-36” Belt width (kg) 000(9,072) 27, 250(12,360) 500(17,917)
Weight at Kingpin-36” Belt width (kg) 6,500(2,948) 6,300(2,858) 9,500(4,309)




/
/
/

Track Mounted Hopper Feeder Conveyor

/

Heavy duty high capacity feeder stacker is designed to deliver enhanced handling and stockpiling of a wide range of materials across industries including aggregates, composting, landscaping and mining. The is an excellent alternative when a traditional direct load stacker may not be the right match for the material, and offers an economical yet highly productive options to the larger the features a large capacity hopper 5cu.m. with adjustable height, ensuring optimized operational efficiency on the job. The design reflects feedback from customers in a cross-section of applications and industries, and PRIME commitment to deliver the best products based on that input


Features & Benefits

  • The unit can also be compacted for transport on one low loader for easy site to site transport.
  • The feeder Conveyor comes with the following features as standard:
  • Dual hydraulic main drive system.
  • Hydraulic folding heading section for transport minimizing setup time.
  • Hydraulically adjustable discharge height up to 10 meters
  • 4 Meter tracks for superior manoeuverability and stability.
  • Fixed speed giving a rating of up to 1500 TPH.
  • Fuel efficient Hydraulics system.
  • User Friendly Hydraulic Controls.
  • Hopper extensions increasing capacity
  • Engine - Power Unit Diesel
  • Transport Height 11' 3” (3.4m) Transport
  • Length 60', (18.3m) 70' , 80'
  • Transport Width 8' 5” (2.6m) Stockpile Height 31' 10” (9.7m)
  • Stockpile Capacity 2,217 yds³ (1,695 m³)
  • Heavy duty design and manufacture.
  • Hydraulic folding head section allowing for compact road transportation.
  • Can be packed into 40ft containers for easy, cost effective transport around the globe.
  • High specification machine designed for ease of maintenance commanding an excellent resale value at project conclusion.
  • Heavy duty design and manufacture.

/
/

Stackable & Jump Conveyor

/

PRIME CONVEYOR has taken notice and have designed a series of portable conveyors that are not only user friendly to transport, they are easy to set up. PRIME CONVEYORS Portable Jump Conveyors (PPJC) offers our clients versatility without compromising performance. If you don't see the size you need, please contact us as we aren't afraid to custom design one specifically for you!
These variable height portable transfer conveyors are specially designed to roll one on top of the other for transport, saving you on shipping and Transport costs. Stackable Conveyors include engineered truss supports and head end rollers for an effortless, stable glide to and from stacked mode. No dangerous picks or lifts common to traditional “stackable” conveyor designs.
Conveyors only require one operator for setup or teardown, helping you save time and labor costs associated with jump conveyor installation. We offer 18mtrs, 21mtrs, 24mtrs lengths, with belt capacities up to 1,200 tons per hour.

Drive, Belting & Pulley Specifications


MODEL CAPACITY MOTOR REDUCER BELTING BELT SPEED HEAD PULLEY TAIL PULLEY
PC55X36-0800 (Top) 800 STPH 15 HP TXT415 36”X108'330PIW Ply 400 Fpm 14”X38”,½ Dia. Lag 12”X38”
PC55X36-0800 (Middle) 800 STPH 15 HP TXT415 36”X108'330PIW Ply 400 Fpm 14”X38”,½ Dia. Lag 12”X38”
PC55X36-0800 (Bottom) 800 STPH 20 HP TXT415 36”X108'330PIW Ply 400 Fpm 14”X38”,½ Dia. Lag 12”X38”

All Models Available 24” – 42” Belt Widths


MODEL LENGTH BELT WIDTH CAPACITY (TPH)
PPJC-50-36 50 36 100-800
PPJC-60-36 60 36 100-800
PPJC-80-36 80 36 100-800
PPJC-100-36 100 36 100-800


Bottom Conveyor Dimensions


MODEL A B C D
PC55X36-0800 55 10'-4” 10'-5” 8'-4”


Transport Dimensions


MODEL A B C D
PC55X36-0800 55'-8” 12'-10” 40'-7” 10'-5”


Top & Middle Conveyor Dimensions


MODEL A B C D
PC55X36-0800 55’ 6'-0” 7'-2” 7'-4”




/

Belt Conveyor

/

Prime conveyors is the provider of custom conveying systems. We offer heavy-duty belt conveyors for bulk handling applications.
The right material handling system can add automation and fluidity to any application. We offer a wide range of optional equipment to complement our conveying systems in order to provide you with a complete system designed to handle your specific material. Belt trippers, weighing units, delumpers, reclaiming equipment, loading shelters and load out systems for trucks, rail cars, and barges are all available.
All belt conveyors and conveyor systems are engineered around your unique application to ensure the best handling solution possible.


Chain Conveyor

Prime conveyors is the provider of custom conveying systems. We offer heavy-duty belt conveyors for bulk handling applications.
The right material handling system can add automation and fluidity to any application. We offer a wide range of optional equipment to complement our conveying systems in order to provide you with a complete system designed to handle your specific material. Belt trippers, weighing units, delumpers, reclaiming equipment, loading shelters and load out systems for trucks, rail cars, and barges are all available.
All belt conveyors and conveyor systems are engineered around your unique application to ensure the best handling solution possible.

/

    Scrapper Chain Conveyor              Submerged Ash Conveyor


Appron Feeder

/


Standard Design Features:

  • Frame - Rugged welded steel beam frame with impact rails to limit flight deflection.
  • Two Deck Options - Feeder flight are available in either cast manganese or formed steel.
  • Heavy Duty Tractor Chain - Common crawler tractor components with hardened steel construction with a unique sealed design for long life..
  • Carrying and Return Rollers - Both types of rollers feature lifetime lubricated, fully sealed bearings and are common crawler tractor components.
  • Head shaft Bearing - Large anti-friction spherical bearings are used on the head shaft with cast steel bearing housings and labyrinth seal covers.
  • Tail Wheel Assembly - Tractor idler wheels (Seal for Life) are mounted to a movable tail frame weldment, that is adjustable with take-up screws to the main frame.
  • Drive Shaft and Sprockets - Cast manganese segmental sprockets are bolted to heavy steel hubs keyed to an oversized front drive shaft. Replaceable segmental sprockets are designed with an odd number tooth for optimum wear, easy removal and reversing without breaking the flight chains.

Apron Feeder Capacity Chart (T.P.H.) & Maximum Feed Size (inch)


Flight Speed Fpm 24 30 36 42 48 54 60 66 72 78 84 90 96 108 120
10 96 150 216 294 384 486 600 726 864 1014 1176 1350 1536 1944 2400
15 144 225 324 441 576 729 900 1089 1296 1521 1764 2025 2304 2916 3600
20 192 300 432 588 768 972 1200 1452 1728 2028 2352 2700 3072 3888 4800
25 240 375 540 735 960 1215 1500 1815 2160 2535 2940 3375 3840 4860 6000
30 288 450 648 882 1152 1458 1800 2178 2592 3042 3528 4050 4608 5832 7200
35 336 525 756 1029 1344 1701 2100 2541 3024 3549 4116 4725 5376 6804 8400
40 384 600 864 1176 1536 1944 2400 2904 3456 4056 4704 5400 6144 7776 9600
Maximum Feed Size Inch 12 15 18 21 24 27 30 33 36 39 42 45 48 54 60

Drag Chain Conveyor

The size of double chain conveyors can reach up to 55”, thanks to the presence of two traction elements, which allow the use of longer scrapers. For these machines, Motridal uses specially designed casehardened and tempered drop-forged forked links. Flights are fixed by means of special pins to the chain links. The chain guides made in wear-resistant steel are bolted to the internal side of the conveyor casing for easy maintenance and replacement.

/
